FMN1T148
Manufacturer:
Rohm Semiconductor
Mfr.Part #:
FMN1T148
Datasheet:
Description:

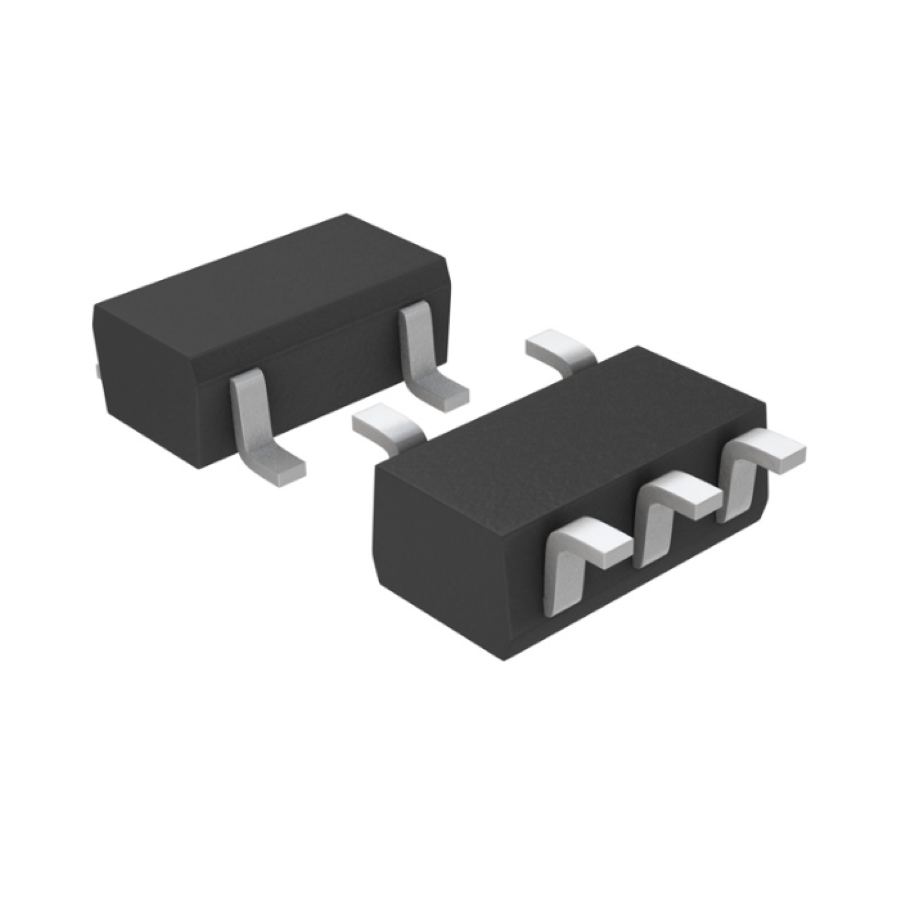

Rectifier Diodes SC-74A SMD/SMT Single Phase Common Cathode Forward Current:80 mA Forward Voltage:900 mV Reverse Voltage:80 V
| Parameter | Value |
|---|---|
| Capacitance | 3.5 pF |
| Voltage Rating (DC) | 80 V |
| Length | 2.9 mm |
| Width | 1.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 5 |
| Height | 1.1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Single Phase |
| Number of Terminals | 5 |
| Current Rating | 25 mA |
| Output Current | 25 mA |
| Forward Current | 80 mA |
| Forward Voltage | 900 mV |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 80 mW |
| Power Dissipation | 80 mW |
| Reverse Recovery Time | 4 ns |
| Max Reverse Leakage Current | 100 nA |
| Max Repetitive Reverse Voltage (Vrrm) | 80 V |
| Element Configuration | Common Cathode |
| Max Surge Current | 250 mA |
| Forward Surge Current (Ifsm) | 80 mA |
| Reverse Voltage | 80 V |
| Peak Non-Repetitive Surge Current | 250 mA |
| Reverse Current | 200 nA |
| Recovery Time | 4 ns |
Stock: 1638
Distributors
pcbx
pcbxUnit Price$0.12240
Ext.Price$0.12240
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12240 | $0.12240 |
| 10 | $0.10834 | $1.08340 |
| 50 | $0.09590 | $4.79500 |
| 100 | $0.08392 | $8.39200 |
| 500 | $0.07343 | $36.71500 |
| 1000 | $0.06964 | $69.64000 |
| 3000 | $0.06605 | $198.15000 |
| 5000 | $0.06203 | $310.15000 |
